数据插入

本节介绍用于插入点、边的方法。

方法	机制	使用场景	备注
`insertNodes()` `insertEdges()`	使用UQL	插入少量点或边
`insertNodesBatchBySchema()` `insertEdgesBatchBySchema()`	使用gRPC将数据直接发送到服务器	插入大量相同schema的点或边	有更严格的格式要求，并且必须使用与嬴图属性类型对应的Java数据类型来给属性赋值（参见属性类型映射）
`insertNodesBatchAuto()` `insertEdgesBatchAuto()`	使用gRPC将数据直接发送到服务器	插入大量不同schema的点或边	有更严格的格式要求，并且必须使用与嬴图属性类型对应的Java数据类型来给属性赋值（参见属性类型映射）

属性类型映射

嬴图属性类型和Python数据类型的映射关系如下：

嬴图属性类型	Python数据类型	示例
`INT32`, `UINT32`, `INT64`, `UINT64`	`int`	`18`
`FLOAT`, `DOUBLE`	`float`	`170.5`
`DECIMAL`	`Decimal`	`65.32`
`STRING`, `TEXT`	`str`	`"John Doe"`
`DATETIME`	`str`^[1]	`"1993-05-06"`
`TIMESTAMP`	`str`^[1], `int`	`"1993-05-06"`, `1715169600`
`BOOL`	`bool`	`True`, `False`
`POINT`	`str`	`"point({latitude: 132.1, longitude: -1.5})"`
`BLOB`	`string`	`"abc"`
`LIST`	`list`	`["tennis", "violin"]`
`SET`	`set`	`[2004, 3025, 1025]`

^[1] 支持的日期字符串格式包括[YY]YY-MM-DD HH:MM:SS、[YY]YY-MM-DD HH:MM:SSZ、[YY]YY-MM-DDTHH:MM:SSZ、[YY]YY-MM-DDTHH:MM:SSXX、[YY]YY-MM-DDTHH:MM:SSXXX、[YY]YY-MM-DD HH:MM:SS.SSS以及它们的变体。

示例图结构

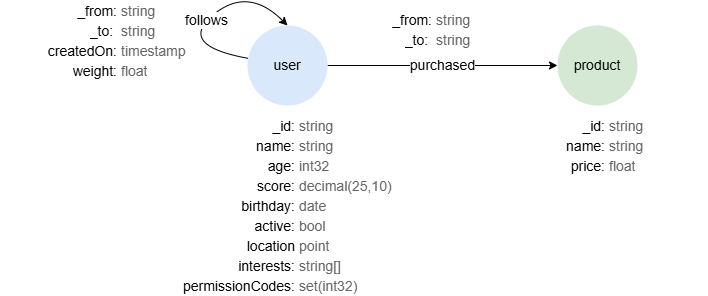

本节示例的点、边插入和删除基于如下的Schema和属性定义进行：

参考此示例创建这个图结构。

insertNodes()

向图中某个Schema插入点。

参数

nodes:List[Node]：待插入的点列表。
schemaName: str：Schema名称。
InsertRequestConfig（可选）：请求配置。

返回值

Response：请求结果。

# Inserts two 'user' nodes into the graph 'social'

insertRequestConfig = InsertRequestConfig(graph="social")

nodes = [
    Node(id="U1", values={
        "name": "Alice",
        "age": 18,
        "score": 65.32,
        "birthday": "1993-5-4",
        "active": 0,
        "location": "point({latitude: 132.1, longitude: -1.5})",
        "profile": "castToRaw(abc)",
        "interests": ["tennis", "violin"],
        "permissionCodes": [2004, 3025, 1025]
    }),
    Node(id="U2", values={
        "name": "Bob"
    })
]

response = Conn.insertNodes(nodes, "user", insertRequestConfig)
if response.status.code.name == "SUCCESS":
    print(response.status.code.name)
else:
    print(response.status.message)

SUCCESS

insertEdges()

向图中某个Schema插入边。

参数

edges:List[Edge]：待插入的边列表；每个Edge的fromId和toId属性必填。
schemaName: str：Schema名称。
InsertRequestConfig（可选）：请求配置。

返回值

Response：请求结果。

# Inserts two 'follows' edges to the graph 'social'

insertRequestConfig = InsertRequestConfig(graph="social")

edges = [
    Edge(fromId="U1", toId="U2", values={"createdOn": "2024-5-6", "weight": 3.2}),
    Edge(fromId="U2", toId="U1", values={"createdOn": 1715169600})
]

response = Conn.insertEdges(edges, "follows", insertRequestConfig)
if response.status.code.name == "SUCCESS":
    print(response.status.code.name)
else:
    print(response.status.message)

SUCCESS

insertNodesBatchBySchema()

通过gRPC向图中某个Schema插入点。此方法针对批量插入进行了优化。

参数

schema: Schema：目标Schema；属性name必填，properties包含图中对应Schema关联的部分或所有属性。
nodes:List[Node]：待插入的点列表；每个Node的values属性必须与Schema.properties结构相同。
InsertRequestConfig（可选）：请求配置。

返回值

InsertResponse：插入请求结果。

# Inserts two 'user' nodes into the graph 'social'

insertRequestConfig = InsertRequestConfig(graph="social")

schema = Schema(
    name="user",
    properties=[
        Property(name="name", type=UltipaPropertyType.STRING),
        #Property(name="age", type=UltipaPropertyType.INT32),
        Property(name="score", type=UltipaPropertyType.DECIMAL),
        Property(name="birthday", type=UltipaPropertyType.DATETIME),
        Property(name="active", type=UltipaPropertyType.BOOL),
        Property(name="location", type=UltipaPropertyType.POINT),
        Property(name="profile", type=UltipaPropertyType.BLOB),
        Property(name="interests", type=UltipaPropertyType.LIST, subType=[UltipaPropertyType.STRING]),
        Property(name="permissionCodes", type=UltipaPropertyType.SET, subType=[UltipaPropertyType.INT32])
    ]
)

nodes = [
    Node(id="U1", values={
        "name": "Alice",
        #"age": 18,
        "score": 65.32,
        "birthday": "1993-5-4",
        "active": 0,
        "location": "point({latitude: 132.1, longitude: -1.5})",
        "profile": "castToRaw(abc)",
        "interests": ["tennis", "violin"],
        "permissionCodes": [2004, 3025, 1025]
    }),
    Node(id="U2", values={
        "name": "Bob",
        #"age": None,
        "score": None,
        "birthday": None,
        "active": None,
        "location": None,
        "profile": None,
        "interests": None,
        "permissionCodes": None
    })
]

insertResponse = Conn.insertNodesBatchBySchema(schema, nodes, insertRequestConfig)
if insertResponse.errorItems:
    print("Error items:", insertResponse.errorItems)
else:
    print("All nodes inserted successfully")

All nodes inserted successfully

insertEdgesBatchBySchema()

通过gRPC向图中某个Schema插入边。此方法针对批量插入进行了优化。

参数

schema: Schema：目标Schema；属性name必填，properties包含图中对应Schema关联的部分或所有属性。
edges:List[Edge]：待插入的边列表；每个Edge的fromId和toId属性必填，values必须与Schema.properties结构相同。
InsertRequestConfig（可选）：请求配置。

返回值

InsertResponse：插入请求结果。

# Inserts two 'follows' edges into the graph 'social'

insertRequestConfig = InsertRequestConfig(graph="social")

schema = Schema(
    name="follows",
    properties=[
        #Property(name="createdOn", type=UltipaPropertyType.TIMESTAMP),
        Property(name="weight", type=UltipaPropertyType.FLOAT)
    ]
)

edges = [
    Edge(fromId="U1", toId="U2", values={
        #"createdOn": "2024-5-6",
        "weight": 3.2
    }),
    Edge(fromId="U2", toId="U1", values={
        #"createdOn": 1715169600,
        "weight": None
    })
]

insertResponse = Conn.insertEdgesBatchBySchema(schema, edges, insertRequestConfig)
if insertResponse.errorItems:
    print("Error items:", insertResponse.errorItems)
else:
    print("All edges inserted successfully")

All edges inserted successfully

insertNodesBatchAuto()

通过gRPC向图中一个或多个Schema插入点。此方法针对批量插入进行了优化。

参数

nodes:List[Node]：待插入的点列表；每个Node的schema必填，并且values必须包含图中对应schema关联的所有属性。
InsertRequestConfig（可选）：请求配置。

返回值

Dict[str,InsertResponse]：Schema名称，插入请求结果。

# Inserts two 'user' nodes and a 'product' node into the graph 'social'

insertRequestConfig = InsertRequestConfig(graph="social")

nodes = [
    Node(id="U1", schema="user", values={
        "name": "Alice",
        #"age": 18,
        "score": 65.32,
        "birthday": "1993-5-4",
        "active": True,
        "location": "point({latitude: 132.1, longitude: -1.5})",
        "profile": "castToRaw(abc)",
        "interests": ["tennis", "violin"],
        "permissionCodes": [2004, 3025, 1025]
    }),
    Node(id="U2", schema="user", values={
        "name": "Bob",
        #"age": None,
        "score": None,
        "birthday": None,
        "active": None,
        "location": None,
        "profile": None,
        "interests": None,
        "permissionCodes": None
    }),
    Node(schema="product", values={
        "name": "Wireless Earbud",
        "price": 93.2
    })
]

result = Conn.insertNodesBatchAuto(nodes, insertRequestConfig)
for schemaName, insertResponse in result.items():
    if insertResponse.errorItems:
        print("Error items of", schemaName, "nodes:", insertResponse.errorItems)
    else:
        print("All", schemaName, "nodes inserted successfully")

All user nodes inserted successfully
All product nodes inserted successfully

insertEdgesBatchAuto()

通过gRPC向图中一个或多个Schema插入边。此方法针对批量插入进行了优化。

参数

edges:List[Edge]：待插入的边列表；每个Edge的schema、fromId和toId必填，并且values必须包含图中对应schema关联的所有属性。
InsertRequestConfig（可选）：请求配置。

返回值

Dict[str,InsertResponse]：Schema名称，插入请求结果。

# Inserts two 'follows' edges and a 'purchased' edge into the graph 'social'

insertRequestConfig = InsertRequestConfig(graph="social")

edges = [
    Edge(schema="follows", fromId="U1", toId="U2", values={"createdOn": "2024-05-06", "weight": 3.2}),
    Edge(schema="follows", fromId="U2", toId="U1", values={"createdOn": 1715169600, "weight": None}),
    Edge(schema="purchased", fromId="U2", toId="67da1ae90000020020000013", values={})
]

result = Conn.insertEdgesBatchAuto(edges, insertRequestConfig)
for schemaName, insertResponse in result.items():
    if insertResponse.errorItems:
        print("Error items of", schemaName, "edges:", insertResponse.errorItems)
    else:
        print("All", schemaName, "edges inserted successfully")

All follows edges inserted successfully
All purchased edges inserted successfully

完整示例

from ultipa import UltipaConfig, Connection, InsertRequestConfig, Node

ultipaConfig = UltipaConfig()
# URI example: ultipaConfig.hosts = ["mqj4zouys.us-east-1.cloud.ultipa.com:60010"]
ultipaConfig.hosts = ["192.168.1.85:60061", "192.168.1.87:60061", "192.168.1.88:60061"]
ultipaConfig.username = "<username>"
ultipaConfig.password = "<password>"

Conn = Connection.NewConnection(defaultConfig=ultipaConfig)

# Inserts two 'user' nodes, a 'product' node, two 'follows' edges, and a 'purchased' edge into the graph 'social'

insertRequestConfig = InsertRequestConfig(graph="social")

nodes = [
    Node(id="U1", schema="user", values={
        "name": "Alice",
        #"age": 18,
        "score": 65.32,
        "birthday": "1993-5-4",
        "active": True,
        "location": "point({latitude: 132.1, longitude: -1.5})",
        "profile": "castToRaw(abc)",
        "interests": ["tennis", "violin"],
        "permissionCodes": [2004, 3025, 1025]
    }),
    Node(id="U2", schema="user", values={
        "name": "Bob",
        #"age": None,
        "score": None,
        "birthday": None,
        "active": None,
        "location": None,
        "profile": None,
        "interests": None,
        "permissionCodes": None
    }),
    Node(id="P1", schema="product", values={
        "name": "Wireless Earbud",
        "price": 93.2
    })
]

edges = [
    Edge(schema="follows", fromId="U1", toId="U2", values={"createdOn": "2024-05-06", "weight": 3.2}),
    Edge(schema="follows", fromId="U2", toId="U1", values={"createdOn": 1715169600, "weight": None}),
    Edge(schema="purchased", fromId="U2", toId="P1", values={})
]

result_n = Conn.insertNodesBatchAuto(nodes, insertRequestConfig)
for schemaName, insertResponse in result_n.items():
    if insertResponse.errorItems:
        print("Error items of", schemaName, "nodes:", insertResponse.errorItems)
    else:
        print("All", schemaName, "nodes inserted successfully")

result_e = Conn.insertEdgesBatchAuto(edges, insertRequestConfig)
for schemaName, insertResponse in result_e.items():
    if insertResponse.errorItems:
        print("Error items of", schemaName, "edges:", insertResponse.errorItems)
    else:
        print("All", schemaName, "edges inserted successfully")
